125mm red yellow green LED traffic signal light module DC12V DC24V traffic light replacement in France

Short Description:

125mm red yellow green LED traffic signal light module DC12V DC24V traffic light replacement in France The details of the 125 type monochrome lamp: Model: WDM-C125 Mainly used in schools, youth palaces, playgrounds, children’s playgrounds 1. Product size: 163*163*70mm 2. Illumination diameter: 125MM 3. Lamp Bead Category: Taiwan Crystal Chip Lamp Beads 4. Number of lamp beads: 60 5. Lamp color: red, yellow, blue, green and white 6. Red wavelength: 620-625NM 7. Yellow wavelength: 590-59...

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Port: Shenzhen

Payment Terms: L/C,D/A,D/P,T/T

Product Detail

FAQ

Product Tags

125mm red yellow green LED traffic signal light module DC12V DC24V traffic light replacement in France

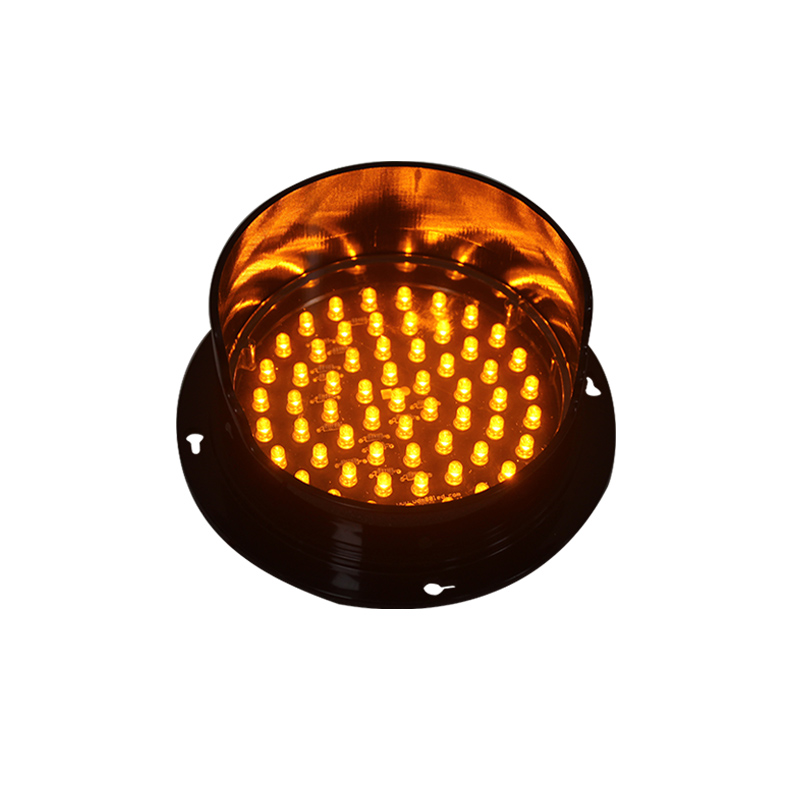

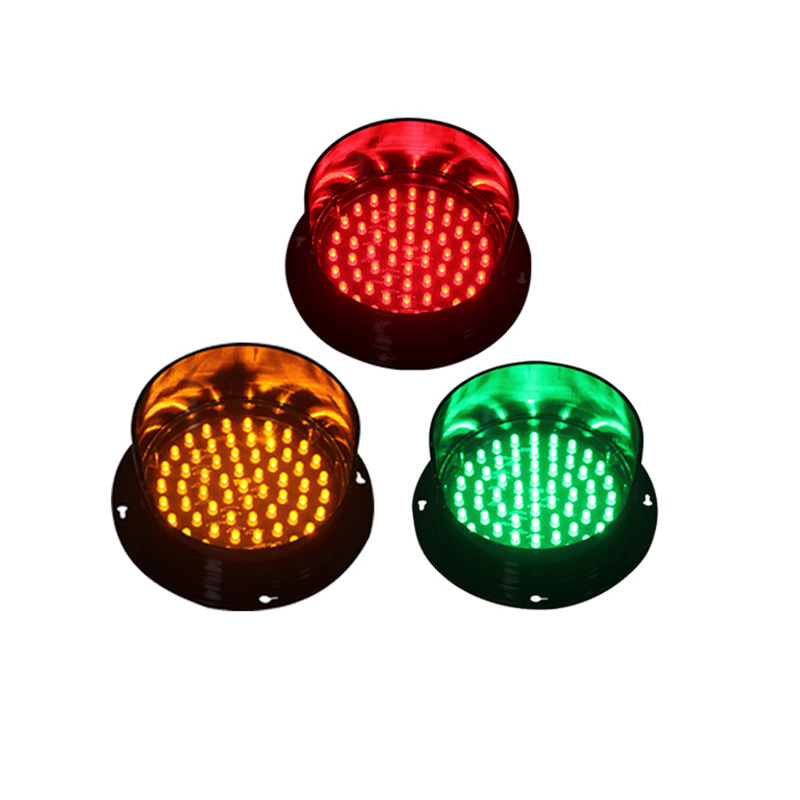

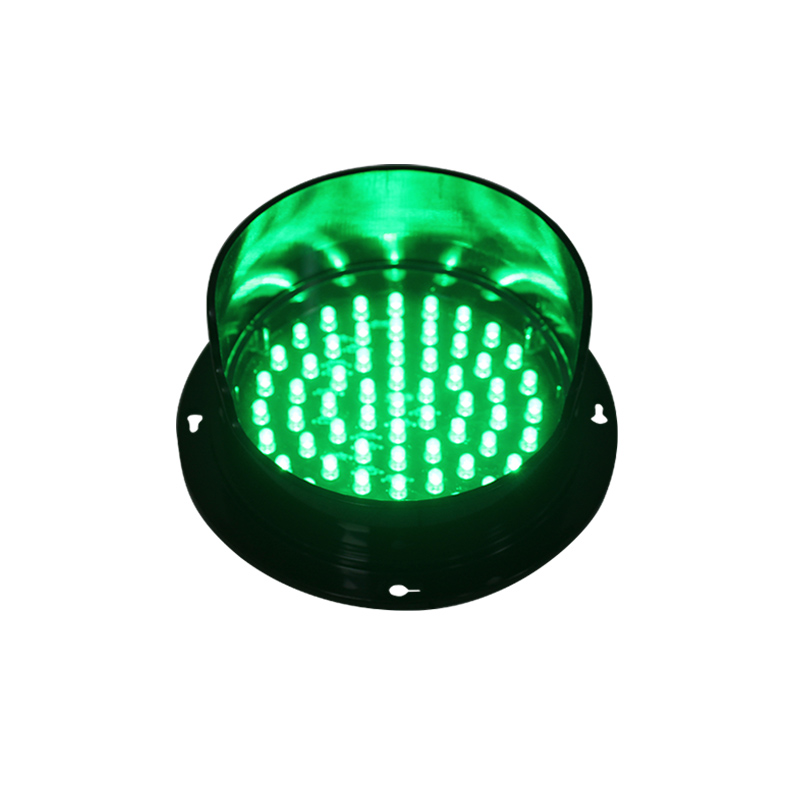

The details of the 125 type monochrome lamp:
Model: WDM-C125 Mainly used in schools, youth palaces, playgrounds, children’s playgrounds
1. Product size: 163*163*70mm
2. Illumination diameter: 125MM
3. Lamp Bead Category: Taiwan Crystal Chip Lamp Beads
4. Number of lamp beads: 60
5. Lamp color: red, yellow, blue, green and white
6. Red wavelength: 620-625NM
7. Yellow wavelength: 590-595NM
8. Blue wavelength: 470-475NM
9. Green wavelength: 500-505NM (blue-green) 520-525NM (green)
10. White brightness: 18900-22600MCD
11. Rated voltage: DC12V/24V
12. Protection level: IP68
13. Rated power: ≤ 5W
14. Shell material: PC
15. Working temperature: -40 ° C ~ 65 ° C
16. Service life: 100000H
The characteristics of 125 type monochrome lamp:
1. The 125-type monochrome lamp is one of the components of the 125-type compact traffic light.
2. 125 type monochrome lamp tube adopts Taiwan crystal chip lamp bead, high brightness, high refresh rate and long service life.
3. The back of the 125-type monochrome lamp is fully potted with three anti-paints, and the waterproof level reaches IP68.
