22 intersection intelligent traffic signal controller

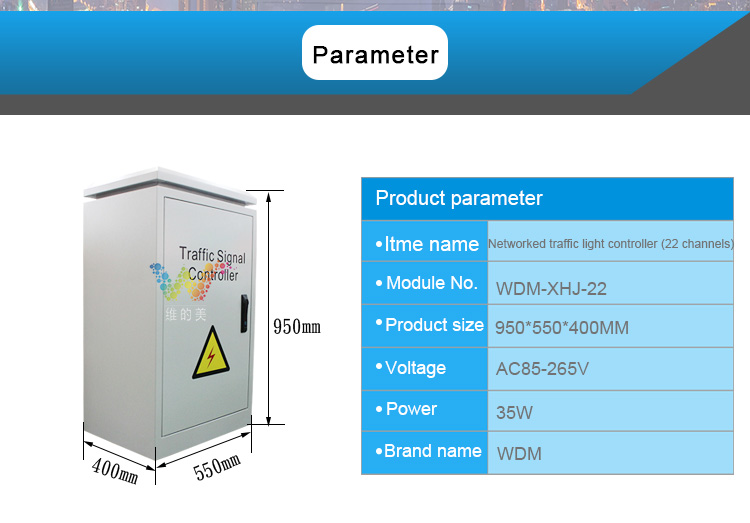

I. Details of the parameters of the22 intersection intelligent traffic signal controller at the intersection:

1. Product size: 950 * 550 * 400MM
2.Overall power: 35W
3.Drive capacity: 1300W per channel
4. Relative humidity: 5% -95%
5. Insulation value: ≥100MΩ
6. Protection settings: automatic power-down protection
7. Save the setting plan: 10 years
8. Communication: RS-232, RS-485, RJ45
9. Shell material: aluminum shell
10. Working temperature: -40 ℃ ~ 65 ℃
11. Working voltage: AC85V-265V
12. Working frequency: 50Hz-60Hz
13. Clock error: ± 1S

Second, the characteristics of the 22 intersection intelligent traffic signal controller at the intersection:
Variable response: Multiple control modes such as multi-period, multi-plan, manual, yellow flash, etc
Easy maintenance: comes with a spare drive board, equipment maintenance and troubleshooting are always faster.
Perfect services: pre-sales early training and after-sales technical guidance, rest assured to buy, with peace of mind.
What you see is what you get: The panel’s simulation instructions in the menu settings correspond to the actual situation at the intersection, which is easy to learn and use.
More security: the wiring position is raised to prevent the equipment from being affected by water leakage due to heavy rain road area.
Fool’s operation panel: time adjustment and common functions can be operated without looking at complicated instructions.
The wiring method is simple: It is in line with site construction habits according to the division of southeast and northwest regions.
Super protection function: leakage protection, lightning protection, output short circuit protection, high current impact protection.
Video Operation Guide: The first to introduce the trinity teaching method of listening, watching and learning, which is scientific, practical and easy to understand.
Intelligent green conflict protection automatically detects green conflicts when set, automatically prompts and prevents the occurrence of green conflicts.

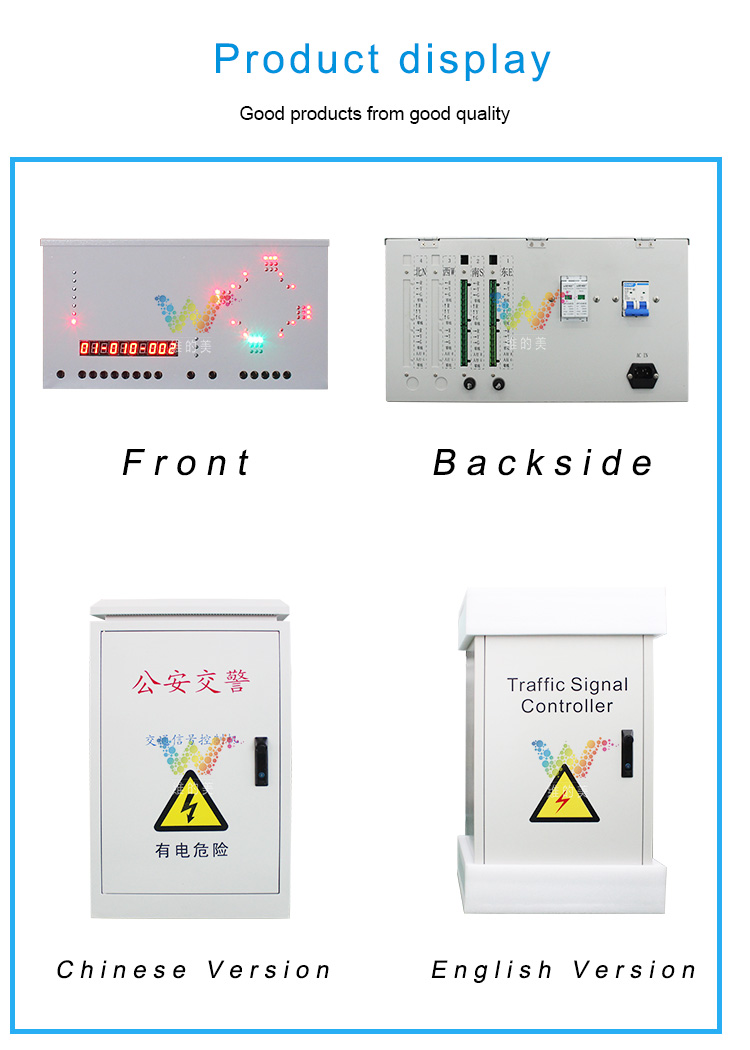

3. Product display of 22 intersection intelligent traffic signal controller at crossroads:
