300mm pedestrian countdown timer traffic light

300mm pedestrian lights with countdown timer traffic lights

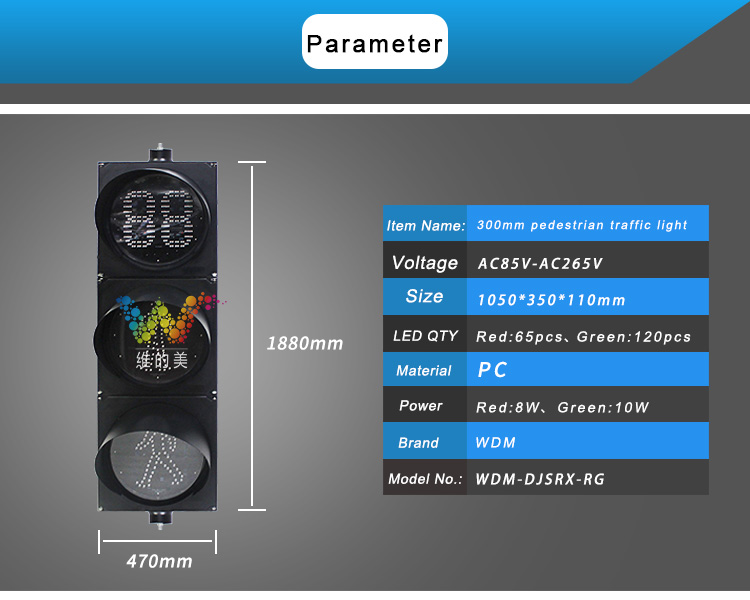

First, the 300mm pedestrian lights with countdown timer traffic lights parameters of the two lights:

Model: WDM-DJ300-03 Mainly used in driving schools, crossroads and other places.

1. Product size: 1050*350*110mm

2. Number of lamp beads: 65 reds, 120 greens Countdown: 64 red and green

3. Lightning diameter: 300MM

4. Lamp Beads Category: Taiwan Crystal Chip Lamp Beads

5. Red wavelength: 620-625NM

6. Green wavelength: 500-505NM (blue-green) 520-525NM (green)

7. Visual distance: ≥1000M

8. Service life: 100000H

9. Shell material: PC

10. Illumination angle: 30°

11. Working temperature: -40 ° C -65 ° C

12. Protection level: IP53

13. Working voltage: AC85V-265V A small amount of DC12V/24V

14. Rated power: red 8W green 10W

15. Installation method: vertical installation

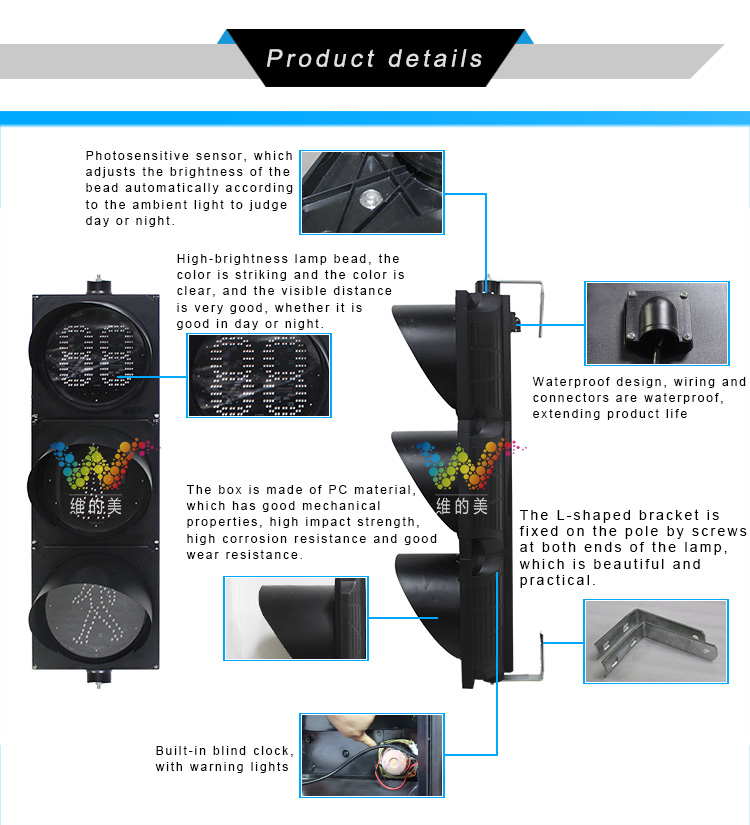

Second, the characteristics of the 300mm pedestrian lights with countdown timer traffic lights:

The 300mm pedestrian lights with countdown timer traffic lights adopts Taiwan crystal chip lamp beads, high brightness, high refresh rate

and long service life.

The 300mm pedestrian lights with countdown timer traffic lights with a countdown traffic light on the back of the design has a threaded hole,

which is not only convenient for the outlet, but also has a good waterproof effect.

The 300mm pedestrian lights with countdown timer traffic lights with the countdown traffic light sunshade is made of PC material, which has

better waterproof and dustproof effect and simple installation.

Each type of lamp and lamp with a 300mm pedestrian lights with countdown timer traffic lights has a snap-on design that facilitates product

inspection and maintenance.

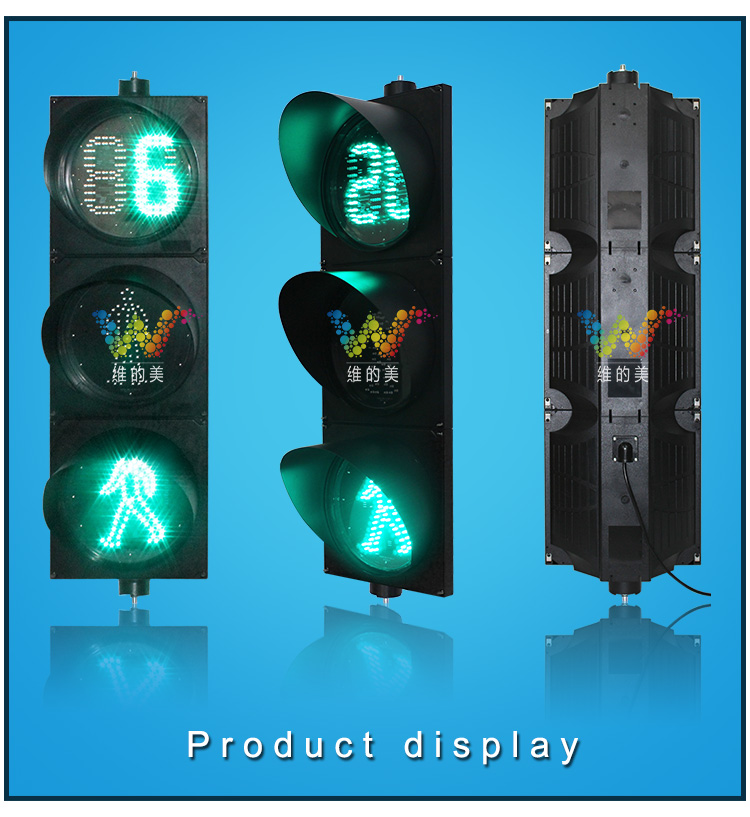

Third, 300mm pedestrian lights with countdown timer traffic lights physical map:

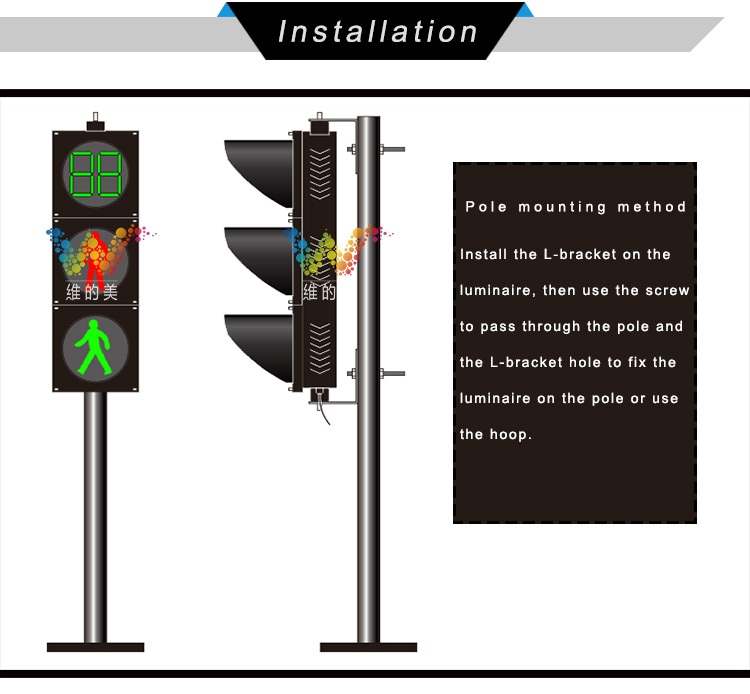

Fourth, 300mm pedestrian lights with countdown timer traffic lights installation:

1. Leave a screw on both ends and unscrew the nut on the screw.

2. Place the “L” bracket on the flat end and tighten the nut according to the hole position and the slot on the screw. (as the picture shows)

3. The sun visor is installed on the upper part of the lamp. The three-corner aluminum plate is folded into a circular arc shape, which is placed

on the lamp and screwed to the corresponding hole to tighten.

4. Make 2 holes on the signal light rod, drill holes according to the hole position of the L bracket of the signal, pass the light rod through the

appropriate screw, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)

5. Connection mode of 300mm pedestrian lights with countdown timer traffic lights:

1. Power up AC220V:

The black line is the public zero line;

The red line is the Red Line FireWire/Red Countdown FireWire;

The green line is the Green Man FireWire/Green Countdown FireWire;

Six, 300mm pedestrian lights with countdown timer traffic lights accessories details:

(1) Lamps: 1 set (2) Instruction manual: 1 copy (3) Certificate of conformity: 1 copy (4) L-shaped bracket: 2 (5) Sunshade: 2 (6) M4 screw: 8

In addition to the 300-type pedestrian lights with countdown three lights, Shenzhen Weimei Optoelectronics Co., Ltd. also produces the following

other types of traffic lights;

100mm teaching traffic lights;

200mm driving school traffic lights;

300mm mobile signal light;

Mobile solar traffic lights;

400mm traffic signal light;

If you are interested in our product,Please fell free to contact with us
