300mm solar mobile four-sided arrow and three lights are mainly used for traffic roads. It is a movable solar emergency traffic light. It uses solar power. The light source uses high-quality LED energy-saving light sources. It is suitable for intersections. Road or overhead line, installation is very simple, time-saving, labor-saving and cost-saving, easy maintenance, emergency command vehicles and pedestrians in the case of power failure or maintenance of traffic lights; its mobilization is very strong, you can move the signal light at will An emergency requires an intersection.

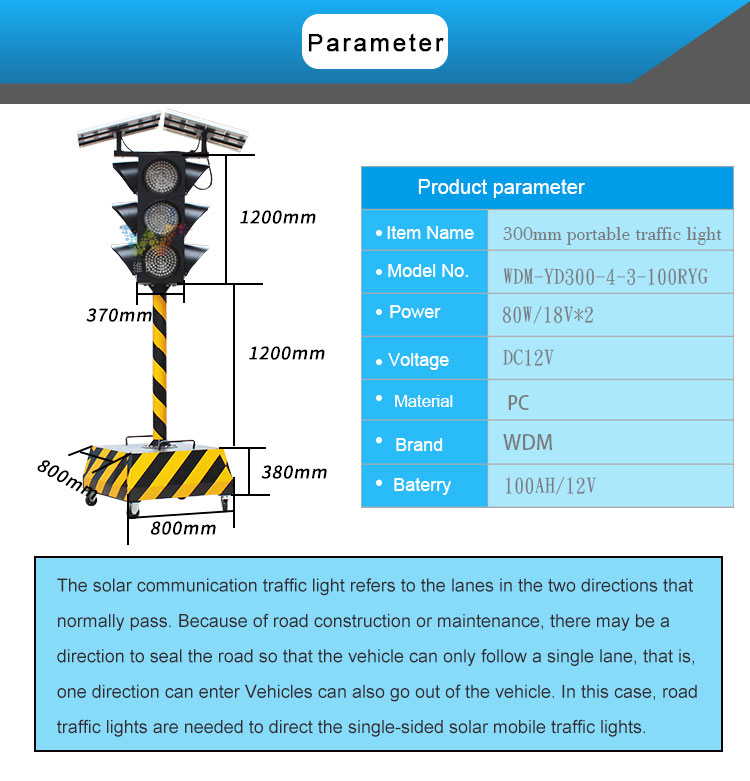

1. The basic parameters of the 300mm portable red yellow green traffic light:
Product model: WDM-YD300-04
1. Lamp head size: 1020 * 370 * 370MM
2. Bottom box size: 800 * 600 * 400MM
3. Total height 3200MM (including solar panel)
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Number of lamp beads: 60 pieces of red, yellow and green * 4
6. Red wavelength: 620-625NM
7. Yellow light wavelength: 590-595NM
8. Green light wavelength: 520-525NM (emerald green) 500-505NM (blue-green)
9. Shell material: electrostatic spraying, sheet metal chassis
10. Working temperature: -40 ℃ -65 ℃
11. Protection grade: IP65
12. Battery: 12V / 100AH
13. Working voltage: DC12V
14. Rated power: red / yellow 12W green 15W
15. Solar panel: 60W / 18V
16. Service life: 100000AH
17. Visible distance: ≥1000M

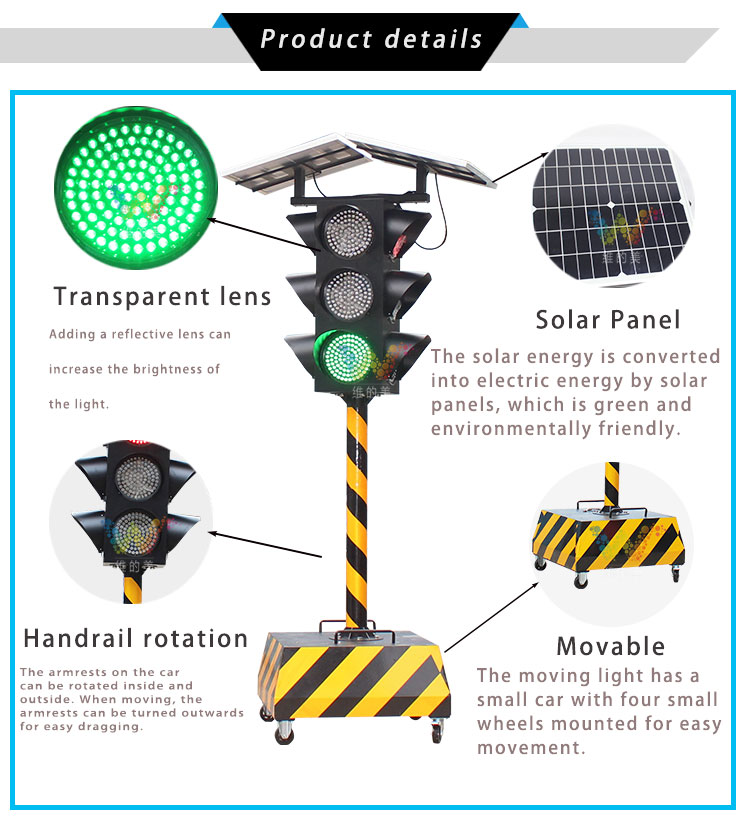

Second, the characteristics of 300mm portable red yellow green traffic light:
1. The 300mm portable red yellow green traffic lights and three lights on all sides uses 360-degree movable casters, which is very convenient to move. At the same time with brake.
2. The 5MM thick flange used in the pole of the 300mm portable red yellow green traffic light enhances the stability of the product.
3. At the bottom of the 300mm portable red yellow green traffic light, a fixed suction cup is added to make the product more stable.
4. 300mm portable red yellow green traffic light use Taiwan wafer chip lamp beads, high brightness, high refresh rate, and long service life.
5. The 300 type solar mobile four-sided arrow three lights use 60W / 18V solar panels, solar power supply, energy saving and environmental protection.
6.300mm portable red yellow green traffic light adopt mobile trolley, which is easy to implement and saves time and effort.

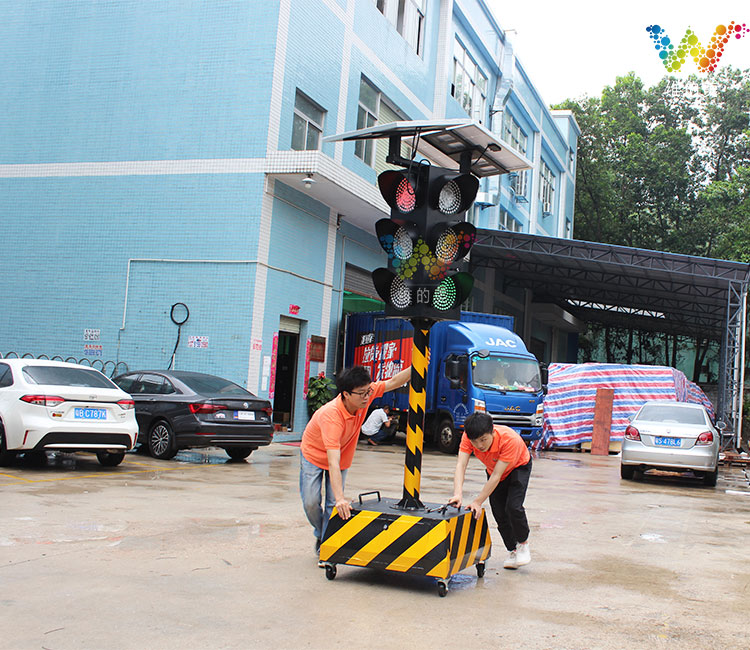

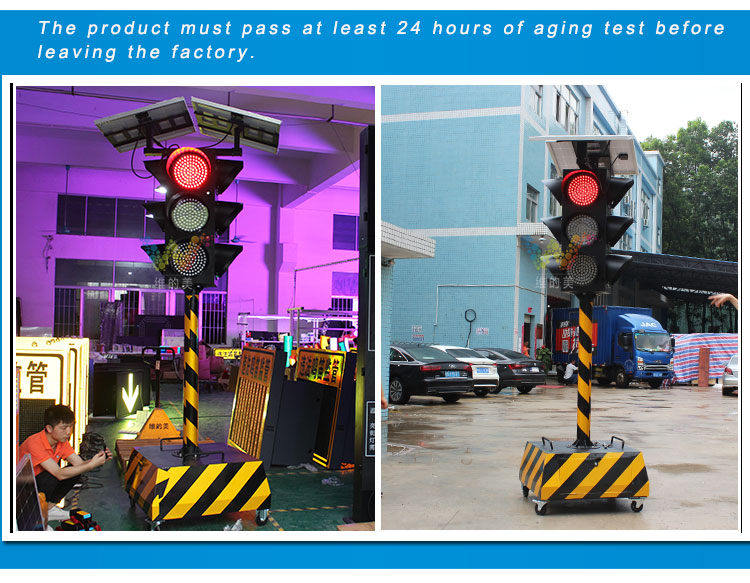

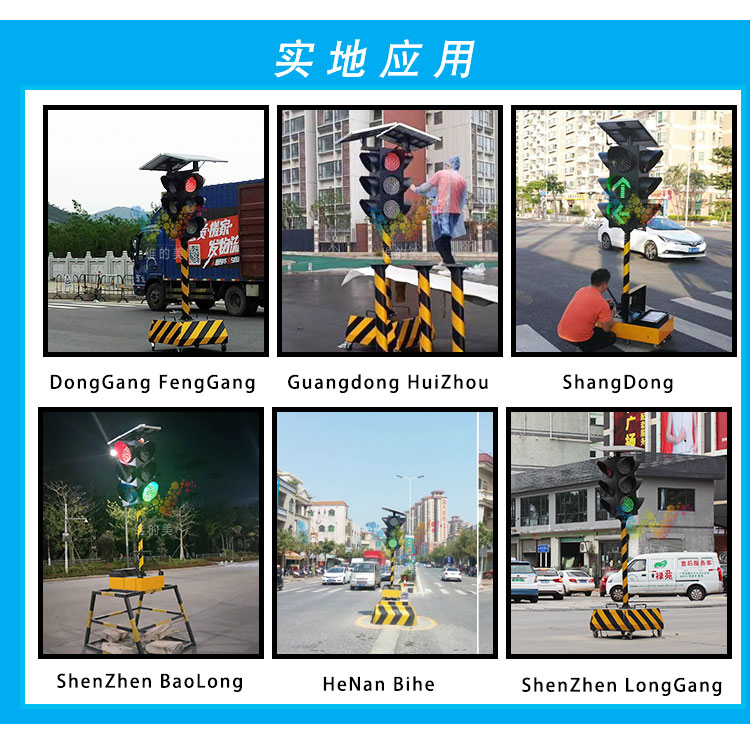

Three, the physical picture of the 300mm portable red yellow green traffic light:

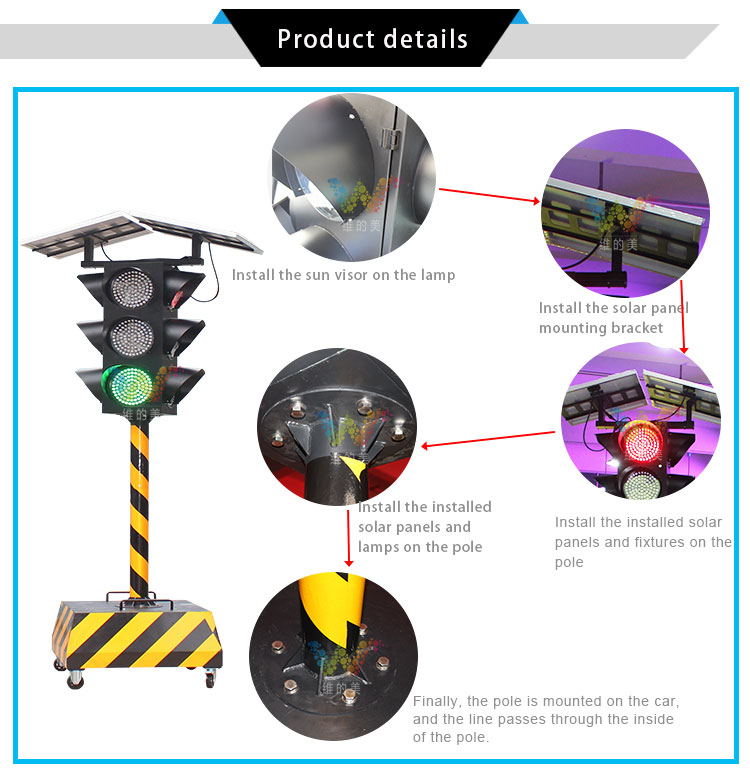

4. Installation method of 300mm portable red yellow green traffic light:
(1) Solar panel installation:
Assemble the solar panel and solar bracket and tighten the screws. (M12 screw is first sleeved into shrapnel, then sleeved, and then tightened)
(2) Installation of solar panels and light boxes:
Align the hole position of the assembled solar panel bracket with the hole position on the top of the lamp, and then fasten with 4 M12 stainless steel screws. Then connect the solar panel to the lamp. (M12 screw is first sleeved into shrapnel, then sleeved, and then tightened)
(3) Install the light box and the pole:

First pass the power cord of the light box through the middle of the pole,
Then align the flange at one end of the pole with the hole at the bottom of the lamp,
Then use 4 M12 stainless steel screws to tighten. (M12 screw is first sleeved into shrapnel, then sleeved, and then tightened)
(4) Installation of upright and trolley:
First, pass the wire in the light box through the middle of the light pole to the bottom of the trolley,
Then align the flange at the other end of the upright with the hole at the bottom of the cart,
Then use 4 M12 stainless steel screws to tighten. (M12 screw is first sleeved into shrapnel, then sleeved, and then tightened)

Finally, take the power cord out of the bottom of the trolley and connect it to the control panel of the trolley.
(5) Installation of sunshade:
The sunshade is installed on the upper part of the lamp, the 3 corner aluminum plate is folded into a circular arc shape, sleeved on the lamp, and the nut is aligned with the corresponding hole position by M4 screw and the nut can be tightened.
Fifth, the wiring instructions of 300mm portable red yellow green traffic light:
1. Control board wiring:
The red line is the common positive electrode;
The black line is the negative of the red light;
The yellow line is the negative of the yellow light;
The green line is the negative of the green light;

Each of the above four power cords is a traffic light in one direction. The power cord corresponding to the east direction is connected to the east direction terminal of the corresponding control board; the power cord corresponding to the west direction is connected to the west direction terminal corresponding to the control board; the power line corresponding to the south direction is connected to the corresponding control The south direction terminal of the board; the power line corresponding to the north direction is connected to the north direction terminal of the corresponding control board. As shown
2. Solar panel wiring:
Blue is negative;
Red is positive;
Press and hold the power button to turn on the power and the power connection is successful.
Press the power switch, when the lamp display shows “16″, enter the manual mode, you can modify the traffic light display time according to actual needs. (Press the KEY power switch to adjust the lamp display number)

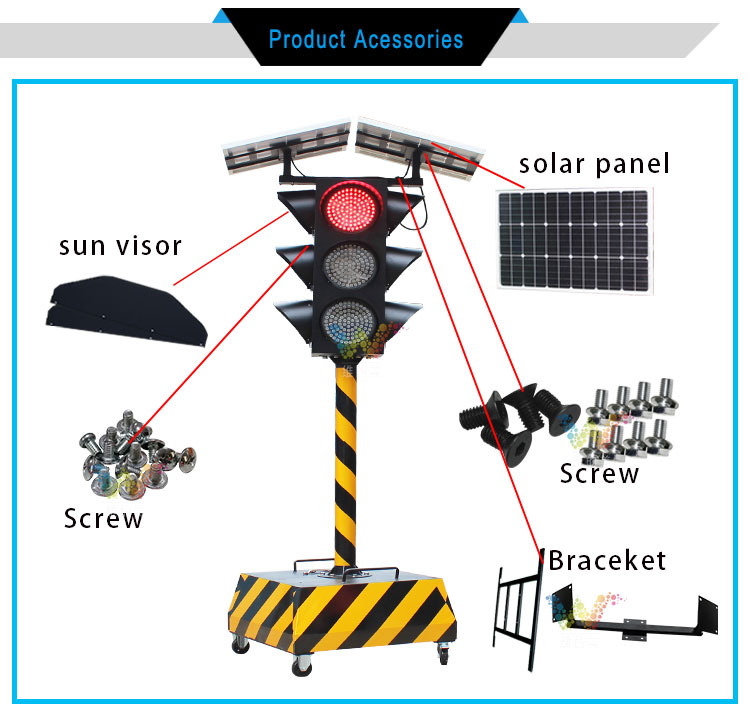

6. Details of accessories for 300mm portable red yellow green traffic light:
(1) Integrated lamps: 1

(2) trolley: 1

(3) solar panel: 1

(4) solar panel bracket: 1

(5) sunshade: 12

(6) M12 screw + shrapnel + Gasket: 16 sets

(7) M4 screw + nut: 48 sets

(8) upright: 1

(9) instruction manual: 2 copies

(10) certificate: 1 copy
