Factory price Business 3D Temperature Recognized Face Recognition Terminal

Factory price Business 3D Temperature Recognized Face Recognition Terminal

Short Description:

Product Features for the Business 3D Temperature Recognized Face Recognition Terminal 1) High-end aluminum alloy material, surface oxidation process 2) Support mask recognition 3) Support external high-precision infrared body temperature detection module to achieve non-contact self-service measurement of human body temperature and reduce the risk of cross infection 4) Support voice alarm for abnormal body temperature and block traffic 5) Support background PC system to centrally manage traff...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Product Features for the Business 3D Temperature Recognized Face Recognition Terminal

    Face-Recognition-Terminal2

    1) High-end aluminum alloy material, surface oxidation process

    2) Support mask recognition

    3) Support external high-precision infrared body temperature detection module to achieve non-contact self-service measurement of human body temperature and reduce the risk of cross infection

    4) Support voice alarm for abnormal body temperature and block traffic

    5) Support background PC system to centrally manage traffic records such as temperature, visitors, white list, etc., with real-time data traceability

    6) Support single camera in vivo detection

    7) Accurately recognize faces in the fastest 0.3 seconds

    8) Recognition accuracy up to 99.7%

    9) The farthest recognition distance is 4 meters

    10) Support for access control, Wiegand output

    11) Support offline face recognition, multi-ethnic recognition

    12) Support single player information

    13) Support face list library expansion

    14) Support 1:N face recognition, ID card comparison

    15) Ultra-wide dynamic range, clear light, back light, dark light imaging, accurate identification

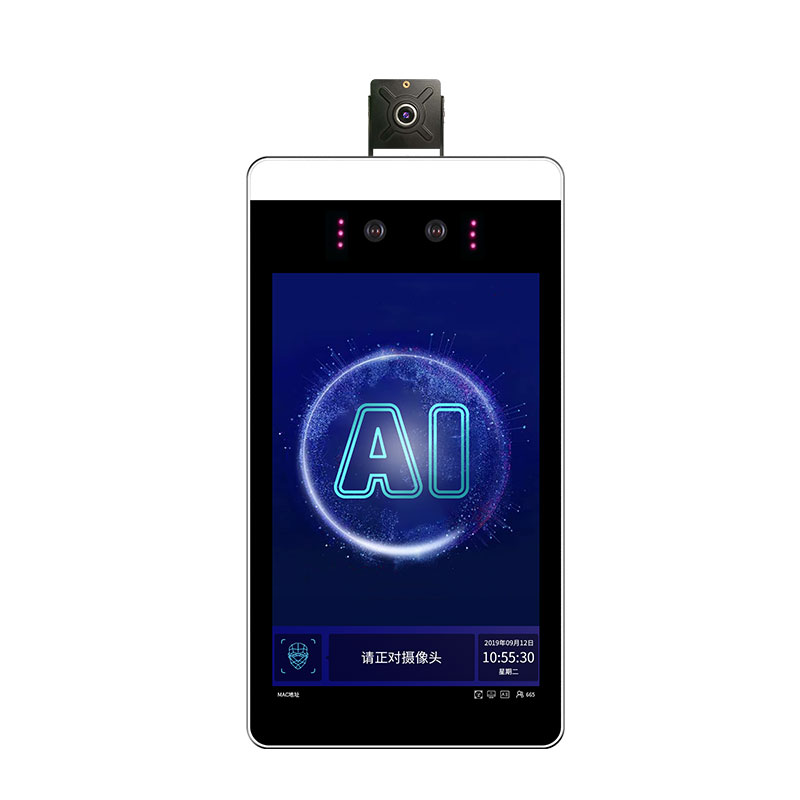

     Face-Recognition-Terminal-3

    Product Specification

    Product model

    WDM608H-B1-A

    WDM608H-L2-A



    Installation scenario Wall mounting Gate installation
    temperature and humidity -20℃ – 60℃,<90℃RH
    Protection level IP54 IP55
    Application scenario indoor
    size 238*128*21mm 439*128*21mm
    Material Aluminum alloy



    system Linux
    CPU Hisi 3516
    storage RAM 512M,ROM 8GB
    Display 7-inch,Resolution 1024*600
    focal length 6mm
    Pixel camera 200W,support Wide dynamic

    Infrared temperature measurement

    Temperature measurement range 32℃—42℃
    Temperature measurement accuracy 0.1℃
    Temperature measurement error ±0.5℃
    Temperature measurement distance ≤40CM



    Recognition distance

    0.3-4m

    Recognition time ≤300ms
    Face library capacity 1:N,N<=50000
    Accuracy 99.70%



    Power interface 1 x DC12V,DC005
    USB 1 x USB2.0
    Relay output 1 x Relay output, 2PIN
    RJ45 1 x RJ45
    Wiegand 1 x WG out
    IO in 1 x I/O in

    Face-Recognition-Terminal-5
