1. Parameter details of mix red green signal PC housing 300mm LED traffic light:
Product model: WDM-JD300-1-R is mainly used in driving schools, intersections, etc.
1. Product size: 350 * 350 * 110MM
2. Number of lamp beads: 156
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 590-595NM
6. Service life: 100000H
7. Shell material: PC
8. Working temperature: -40 ℃ -65 ℃
9. Light angle: 30 °
10. Protection level: IP53
11. Working voltage: AC220V
12. Visible distance: ≥600M
13. Installation method: horizontal or vertical

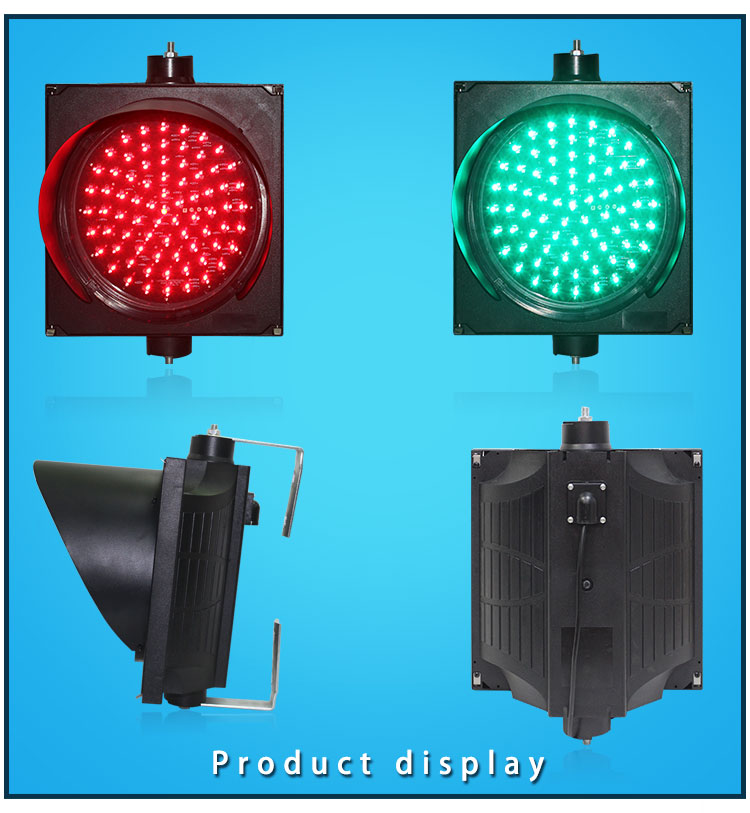

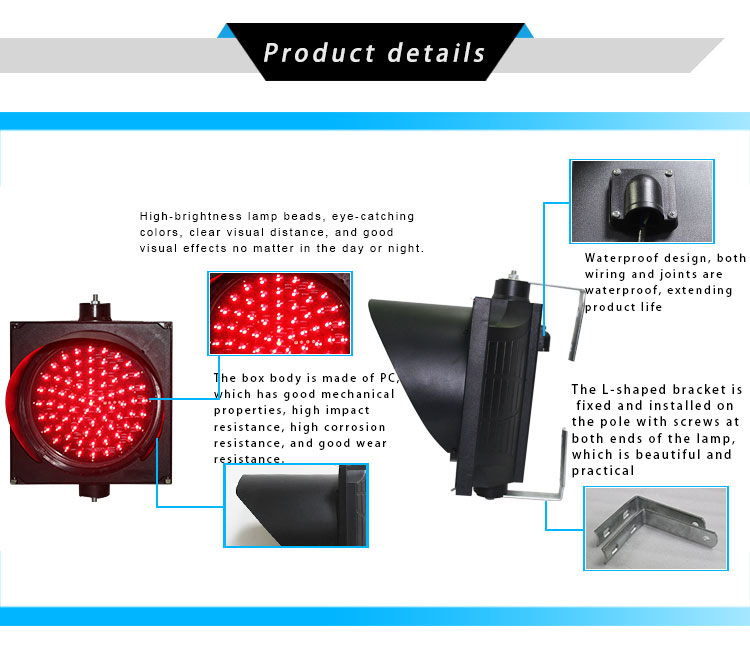

Second, the physical picture of the mix red green signal PC housing 300mm LED traffic light:

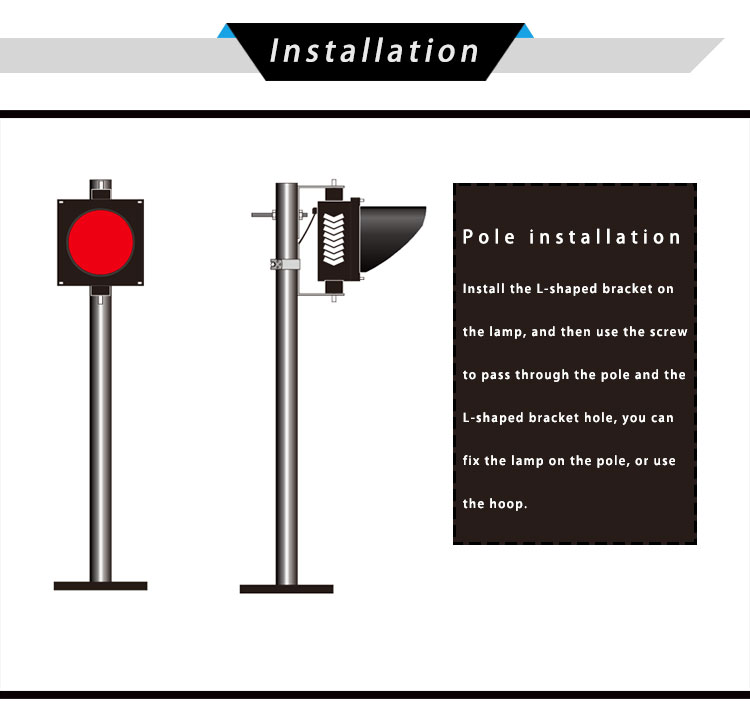

Third, the installation method of mix red green signal PC housing 300mm LED traffic light:

Installation method: horizontal installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the “L” bracket on the screw according to the hole position and the clamping slot, and tighten the nut.
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape and put it on the lamp. Tighten the screw with the corresponding hole.
4. Make two holes in the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are just the same.
Note 2 points,
1. The sun visor is on the upper part of the lamp
2. Outlet hole facing down
4. Wiring method of 300 type full red single lamp:
1. Connect to DC12V / 24V:
Red positive electrode
Black negative electrode
2. Connect to AC220V:
Black zero line
Red firewire

In addition to the mix red green signal PC housing 300mm LED traffic light:
1.400mm red and yellow full plate with four lamps with left and right arrows
2.300mm left and right green arrow two lights
3.125mm teaching red, yellow and green lights (with voice tripod)
4.125mm red and green traffic lights
